1814 High-Production, Oil-Conserving Gas Fryers

Brand : FRYMASTER


1814 High-Production, Oil-Conserving Gas Fryers

Specifically designed to handle high production demands of a varied menu while conserving oil, energy and space.

The 1814 large capacity fryers have a 63-lb (31 liter) frypot oil capacity with an 18x 14x 3-3/4” (45.7 x 35.6 x 9.5 cm) cooking area. The ability to cook three baskets of food in an 18x 14x 3-3/4cooking area allows for footprint, oil use, and energy use reductions over standard 50-lb fryers. Two 1814 fryers can do the work of three standard fryers and two 1814 fryers combined with an HD50 fryer allows three fryers to do the work of four standard fryers. The savings add up quickly using 12-20% less oil, upwards of 50% less energy, and 11-15% less space.

Frymasters Thermo-Tube heat transfer system with 6vs. 4diameter tubes provides superior heat-to-oil transfer that saves energy and extends oil life. The tubes have high-heat, stainless steel alloy flow baffles that efficiently transfer the fryers energy input to the surrounding oil. The durable baffles and reliable, built-to-last, high-efficiency burners keep maintenance to a minimum.

The fryers SMART4U Lane controller has programmable cook buttons and features that make it easy to produce consistent, great-tasting food. Digital, CM3.5, and SMART4U® 3000 controller options are also available.

Crumbs/sediment from the frying area are trapped in the wide cold zone where they do not carbonize and contaminate the oil or cling to fried foods. The bottom of the frypots are sloped toward the front and are equipped with a large drain line so crew members can quickly flush out sediment and remove old oil.

The built-in filtration models make it easy to preserve oil life and maintain food quality. The built-in filter utilizes an 8 GPM (30 LPM) pump and is equipped with a 3” (7.61 cm) drain line, making filtering fast, safe, and easy. The built-infeature puts filtration within the fryer battery where its most convenient to use.


แบ่งปันให้เพื่อนของคุณ

Design

18" x 14" x 3-3/4" (45.7 x 35.6 x 9.5 cm) frying area per 63-lb. gas tube frypot 11814/HD50G/11814 (with filter) two 18" x 14" x 3-3/4" (45.7 x 35.6 x 9.5 cm) 63-lb. gas tube frypots and one 14" x 14" 3-1/2" (35.6 x 35.6 x 8.9 cm) gas tube frypot

Input

11814 & 11814GF = 119,000 Btu/hr. (29,975 kcal/hr.) (34.9 kw/hr.)
21814GF, 31814GF, 41814GF = 119,000 Btu/hr. (29,975 kcal/hr.) (34.9 kw/hr.) per frypot
HD50G = 100,000 Btu/hr. (25,189 kcal/hr.) (29.3 kw/hr.)

Controller

SMART4U® Lane controller has programmable cook buttons and features that make it easy to produce consistent, great-tasting food.

Temperature probe

Robust, RTD, 1° compensating temperature probe.

Cold zone

Wide cold zone traps sediment

Construction

Stainless steel frypot, front and cabinet sides

Basket hanger

Sturdy, stainless steel, over-the-flue basket hangers.

Baskets

Three twin -- 11814 model
Six twin -- 21814 model
Nine twin -- 31814 model
Twelve twin -- 41814 model
Eight twin -- 11814/HD50/11814 model

Built-in Filtration

11814GF, 21814GF, 31814GF, 41814GF and 11814/HD50G/11814 come standard with built-in filtration

Casters

21814GF, 31814GF, 41814GF and 11814/HD50G/11814 come standard with casters

Technical Specification

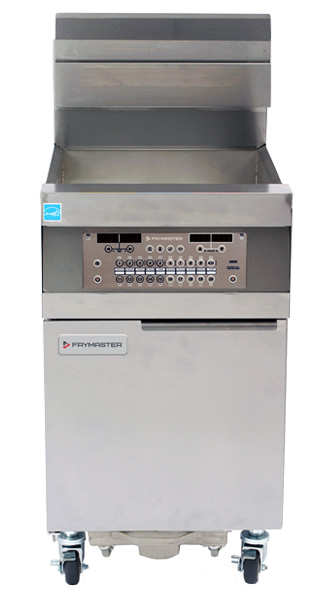

1814 Gas High-Production Fryers - 11814 Model

W x D x H                                                                20" x 33-1/8" x 47-3/4"

                                                                         50.8cm x 84.1cm x 121.3cm

Weight                                                                                   255.7 lb (116 kg)

Power Output                                                                     19000.00 BTUs

Power Input Type                                                                   Gas Natural

Certifications

1814 Gas High-Production Fryers - 11814GF Model

Single 1814 gas high-production fryer with filtration.

W x D x H                                                                 20x 33-1/8x 47-3/4"

                                                                         50.8cm x 84.1cm x 121.3cm

Weight                                                                                   390.2 lb (177 kg)

Power Output                                                                     119000.00 BTUs

Power Input Type                                     Gas Natural Gas Propane

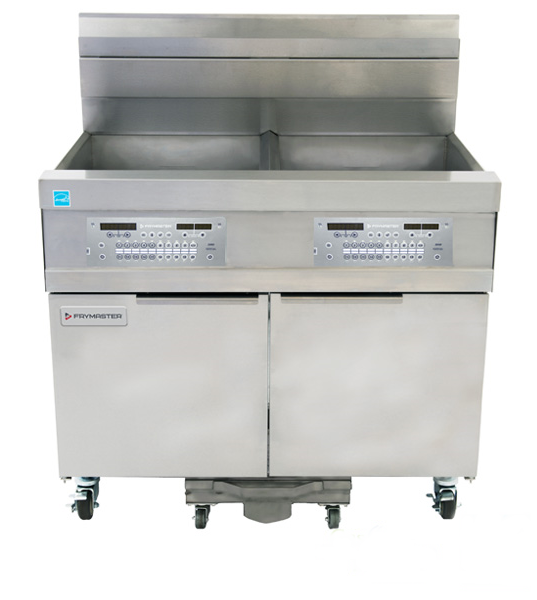

1814 Gas High-Production Fryers - 21814 Model

W x D x H                                                                 40" x 33-1/8" x 47-3/4"

                                                                         101.6cm x 84.1cm x 121.3cm

Weight                                                                                 645.9 lb (293 kg)

Power Output                                                                    119000.00 BTUs

Power Input Type                                                                   Gas Natural

Certifications

1814 Gas High-Production Fryers - 31814 Model

W x D x H                                                                60" x 33-1/8" x 47-3/4"

                                                                        152.4cm x 84.1cm x 121.3cm

Weight                                                                                900 lb (408.2 kg)

Power Output                                                                    119000.00 BTUs

Power Input Type                                                                   Gas Natural

Certifications

1814 Gas High-Production Fryers - 41814 Model

W x D x H                                                                80" x 33-1/8" x 47-3/4"

                                                                        203.2cm x 84.1cm x 121.3cm

Weight                                                                                 1155 lb (523.9 kg)

Power Output                                                                    119000.00 BTUs

Power Input Type                                                                   Gas Natural

Certifications

1814 Gas High-Production Fryers - 11814-HD50G-11814 Model (with filter)

W x D x H                                                     555-5/8 x 33-1/8x 47-3/4"

                                                                      141.3cm x 84.1cm x 121.3cm

Weight                                                                                  907 lb (411.4 kg)

Power Output                                                                    119000.00 BTUs

Power Input Type                                                                   Gas Natural

Certifications

Accessories
Filtration

Built-in filtration for 11814G model

Bulk Oil

Dispose and fresh fill on batteries with built-in filtration

External Oil Discharge (dispose only)

Available on built-in filter batteries of two or more frypots. Must specify front or rear connection. Front connection comes with 5' washdown hose (precludes bulk rear oil discharge)

Controller

Digital*, CM3.5*, and SMART4U 3000

Spreader Cabinet

Must fit within a 4-cabinet fryer battery

Frypot covers

Stainless steel

Splash Shield
Fish Plate
Baskets

Chicken, full, dual, quad

Casters

Set of four (included on filter models)

Quick Disconnect

With gas line and adapter:

1" x 48" (2.5 x 1219 cm)

1" x 36" (2.5 x 91.4 cm)

3/4x 48” (1.9 x 121.9 cm) (11814 only)

3/4x 36” (1.9 x 91.4 cm) (11814 only)

Sediment Tray
