193 Classic

Brand : CARPIGIANI


Twin twist counter top machine to produce soft ice cream and frozen yogurt

Pump or gravity fed, the machine ensures great production results

High versatility
Give free space to your imagination and create cups as well as new soft delights and single portions

A cool look
The machine can be adapted to all types of shop thanks to its new modern panel

Overrun and consistency control
Different consistency control settings for various mix types and easy adjustable overrun


แบ่งปันให้เพื่อนของคุณ

Overview
Optional configurations

Self-pasteurization

With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year

Teorema Remote Control

It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule

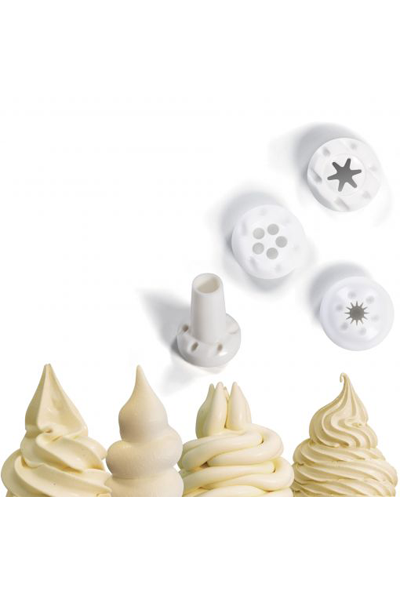

Single portions dispensing head

With interchangeable nozzles to make single portions and delights

Self closing device

The dispensers close automatically stopping the flow of ice cream, eliminating any waste and preventing mess

Only You

Customize your machine with your colours and logo

Wash Kit

Optional tap above the tank to facilitate the cleaning operations

Features & Benefits

Two beater motors and separate cooling systems

The independent cylinders allow simultaneous production of different types of ice cream

Stainless steel pressurized gear pump in Advanced Thermoplastic Polymer (P model)

The pump ensures the best ice cream texture, quality and high overrun, adjustable from 40% to 80%

Independent pump transmissions (P model)

Help to extend the pump and gears life and allow flexibility and maximum performance

Gravity fed system (G model)

Control valves naturally add air to the mix producing a firm and dry ice cream having an overrun up to 40%

Tank agitators

Prevent product stratification and help to reduce foam by maintaining a fluid consistency

Tank rubber lid

Light and handy. It facilitates the cleaning and filling operations

High efficiency beater in POM

Single piece for a dry, compact gelato

Adjustable ice cream flow

Adjustable product flow to meet your specific dispensing speed and volume requirements

Direct expansion cooling cylinders

Optimize refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving

Defrost system

Possibility to heat the cylinders to simplify the cleaning procedure

Rear panel chimney (air cooled version)

Allows to optimize space and to place machines next to each other

Technical Characteristics
flavour

2+1

Mix Delivery System

Pump or Gravity

Cylinder Capacity
Lt

1,75

Tank Capacity
Lt

12+12 with the Pump model; 18+18 with the Gravity model.

Hourly production
75 gr portions

435 with the Pump model; 415 with the Gravity model; Note production capacity depends on the mix used and the room temperature.

Electrical
Cooling System

Air, water optional.

Hz

50*

Ph

3*

Volt

400*

Fuse Size A

16

Rated Power Input kW

4,7 kW with the Pump model; 4,5 kW with the Gravity model.

Refrigerant
Refrigerant

R452; Alternative Solutions available.

Dimensions
Net Weight kg

210 kg for the Pump model; 190 for the Gravity model.

Air-cooled version | W x D x H cm

55 x 87,5 x 89 cm

Note

** other voltages and cycles available upon request. 193 Classic is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.

SPEC SHEET
