VM704

Brand : MOFFAT


BAKING

Moulders

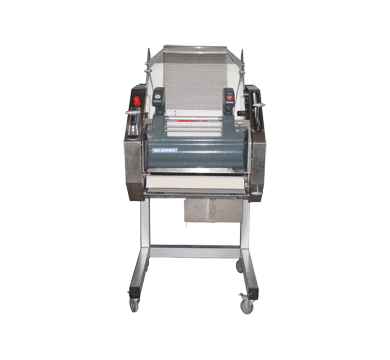

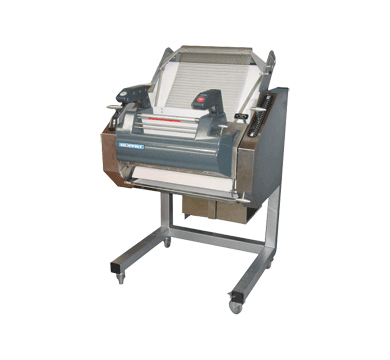

Moffat VM704 - Versatile Bread Moulder




แบ่งปันให้เพื่อนของคุณ

Product Features

• Fitted with patented Bap/Panini flattening rollers (VM704 only)
• Four piecing fitted as standard
• Loaf guides fitted for loaf uniformity
• Emergency stop button
• Derpanyl composite non-stick moulding belt and
teflon coated rear moulding board
• LightSpeed operator protection system
• Weight range 35-1000gms
• Maximum output 900 loaves / 1800 rolls per hour

Overall Construction

• Galvanised steel main body, stainless steel finish
• Fibreglass mouldings
• Curling chain stainless steel construction
(removable for cleaning)
• Sheeting rollers non stick PVC material

Operation

• Four piecing blades activated by front level
• Loaf quides fitted with width adjustment lever
• Fully adjustable sheeting roller settings
• Operation & emergency stop buttons (front mounted)

Dimensions

Width: 1010mm
Depth: 950mm
Height: 1610mm
Net weight: 410kg

Max Moulding Length

70 mm.

Electrical Requirements

400-415V, 3P+E, 50Hz, 1.0kW
Supplied with a 4 pin, 10amp plug

Additional Technical Information

Power outlet to be located a minimum 1.5m off floor

SPEC SHEET เปิด
