| Overview | |
| Quality |
Mister Art Plus can produce gelato and sorbets, create Crystal for filling large cake molds and narrow stick gelato molds, as well as gelato pastries like single portions of gelato and spumoni, and fresh pastries like mousses and Bavarian creams. |
| Performance |
A gear pump patented by Carpigiani ensures the best structure and control of overrun. Mister Art Plus has two tanks, two motors, and two independent cylinders which produce two products of different consistency at the same time. |
| Convenience |

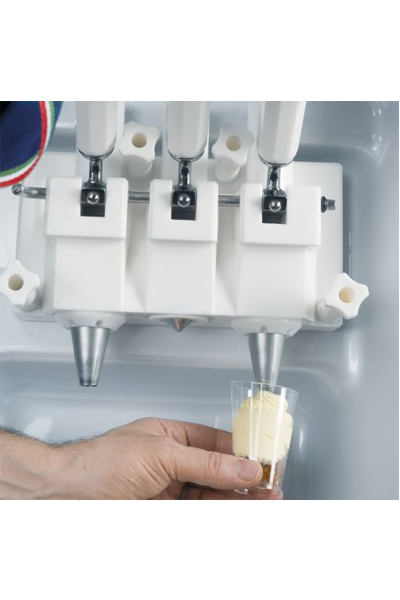

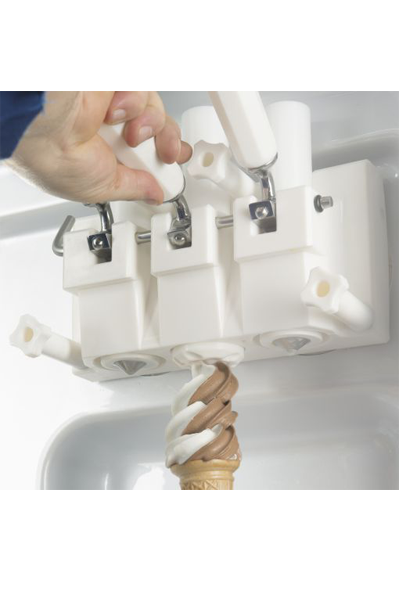

Mister Art Plus's door is designed for the application of terminals to facilitate filling: 2 for gelato pastries, 2 for fresh pastries, 2 hoses with a Crystal portioning pistol (used to create two different crystal densities and to produce, for example, multi-layer cakes). Recipe book supplied. |
| Savings |
With Mister Art Plus, you can do your job easily and save
time. |
| Safety |
Accident prevention thanks to rounded corners. Optional Teorema: monitoring and diagnosis via the internet for easier assistance. |
| Hygiene |

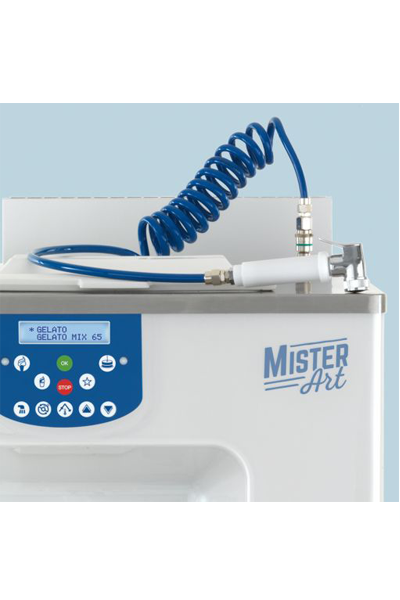

Self-pasteurizing system to sanitize all parts of the machine that come into contact with the product. Heated cleaning of the cylinder to simplify cleaning operations. Brush for cleaning the hose. Optional Sprayer with spiral hose and quick coupling. |
| Technical Characteristics | |
| Pump Gears |
Yes |
| Tank Capacity | |
| Tank Capacity lt |
12+12 |
| Hourly production | |
| 75g Gelato portions |
485 |
| 85cc Stick treats |
580 |
| Electrical | |
| Condenser |
Air or Water** |
| Hz |
50* |
| Ph |
3* |
| Volt |
400* |
| Fuse Size A |
16 |
| Rated Power Input kW |
4,7 |
| Dimensions | |
| Net Weight kg |
225 |
| Air-cooled version | W x D x H cm |
55 x 87,5 x 89 |
| Water-cooled version |W x D x H cm |
55 x 80,5 x 85 |
| Note |
*
Other voltages and cycles are available with additional charge. ** Water-cooled versions available with
additional charge. Production
will vary depending on the ingredients used. Mister Art Plus is produced by Carpigiani according to UNI
EN ISO 9001 Certified Quality System. All specifications mentioned must be considered
approximate; Carpigiani reserves the right to modify, without notice, all parts
deemed necessary. |
| SPEC SHEET |
