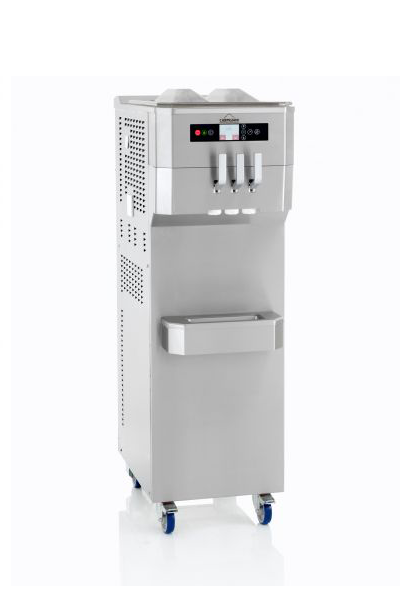

XVL 3 Classic

Brand : CARPIGIANI


Twin twist floor standing machine to produce soft ice cream and frozen yogurt

Maximum versatility and high production capacity: pump or gravity fed, the machine suitable for all customers

Large production capacity
Continuous production is guaranteed even during peak hours

Production flexibility and versatility
Satisfy all your customers needs by offering a wide range of products: soft serve ice cream, frozen yogurt, fruit sorbets and single portions

Overrun and consistency control
Different consistency control settings for various mix types and easy adjustable overrun




แบ่งปันให้เพื่อนของคุณ

Overview
Optional configurations

Self-pasteurization

With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year

Teorema Remote Control

It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule

Single portions kit

Optional nozzles to fill cups and tartlets and to produce ice cream single portions

Mixer

Optional mixer with disposable spoons to swirl toppings into the ice cream

Dry Filling System

Possibility of preparing the mix directly in the hopper by adding water and dry mix

Features & Benefits

Two beater motors and separate cooling systems

The independent cylinders allow simultaneous production of different types of ice cream

Stainless steel pressurized gear pump in Advanced Thermoplastic Polymer (P model)

The pump ensures the best ice cream texture, quality and high overrun, adjustable from 40% to 80%

Independent pump transmissions (P model)

Help to extend the pump and gears life and allow flexibility and maximum performance

Gravity fed system (G model)

Control valves naturally add air to the mix producing a firm and dry ice cream having an overrun up to 40%

Tank agitators

Prevent product stratification and help to reduce foam by maintaining a fluid consistency

High efficiency beater in POM

Single piece for a dry, compact gelato

Self closing device

The dispensers close automatically stopping the flow of ice cream, eliminating any waste and preventing mess

Adjustable ice cream flow

Adjustable product flow to meet your specific dispensing speed and volume requirements

Direct expansion cooling cylinders

Optimize refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving

Defrost system

Possibility to heat the cylinders to simplify the cleaning procedure



Technical Characteristics
Flavour

2+1

Mix Delivery System

Pump or Gravity

Cylinder Capacity
Lt

1,75

Tank Capacity
Lt

13+13

Hourly production
75 gr portions

630 for the Pump model; 600 for the Gravity model. (production capacity depends on the mix used and the room temperature).

Electrical
Cooling System

Air, water optional

Hz

50*

Ph

3*

Volt

400*

Fuse Size A

16

Rated Power Input kW

5,0 kW for the Pump model; 4,8 kW for the Gravity model.

Refrigerant

R452 (alternative solutions available)

Dimensions
Net Weight kg

310 kg for the Pump model; 300 for the Gravity model.

Air-cooled version | W x D x H cm

50 x 93 x 160,5

Note

*other voltages and cycles available upon request. XVL 3 Classic is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
