XVL 1 Steel

Brand : CARPIGIANI

Single flavour floor standing pump machine to produce soft ice cream and frozen yogurt

Very high production capacity and versatility: the machine satisfies all customer needs

Large production capacity
Continuous production is guaranteed even during peak hours

Production flexibility and versatility
Satisfy all your customers’ needs by offering a wide range of products: soft serve ice cream, frozen yogurt, fruit sorbets and single portions

Overrun and consistency control

Different consistency control settings for various mix types and easy adjustable overrun

แบ่งปันให้เพื่อนของคุณ

Overview

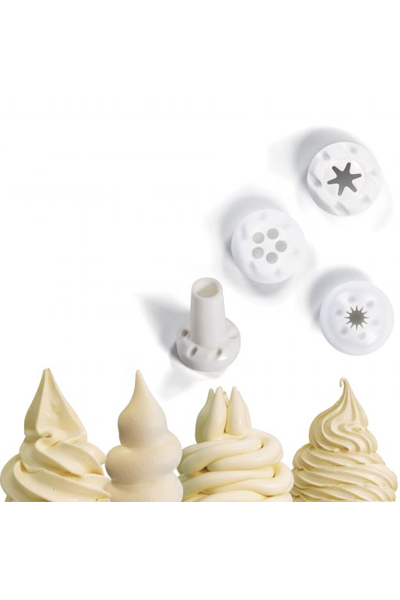

Optional configurations	Self-pasteurization With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year Teorema Remote Control It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule Single portions kit Optional nozzles to fill cups and tartlets and to produce ice cream single portions Mixer Optional mixer with disposable spoons to swirl toppings into the ice cream Dry Filling System Possibility of preparing the mix directly in the hopper by adding water and dry mix
Features & Benefits	Stainless steel pressurized gear pump in Advanced Thermoplastic Polymer The pump ensures the best ice cream texture, quality and high overrun, adjustable from 40% to 80% Independent pump transmission Helps to extend the life-span of the pump and gears and allows for flexibility and maximum performance Interactive display Communicates with the operator delivering instructions and data regarding machine performance Tank agitator Prevents product stratification and helps to reduce foam by maintaining a fluid consistency 2E-RSI high efficiency beater Interchangeable plastic scrapers and shaft for a soft, creamy gelato Self closing device The dispenser closes automatically stopping the flow of ice cream, eliminating any waste and preventing mess Adjustable ice cream flow Adjustable product flow to meet your specific dispensing speed and volume requirements Direct expansion cooling cylinder Optimizes refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving Defrost system Possibility to heat the cylinder to simplify the cleaning procedure

Technical Characteristics
Flavour	1
Mix Delivery System	Pump
Cylinder Capacity
Lt	1,75
Tank Capacity
Lt	13
Hourly production
75 gr portions	510 (production capacity depends on the mix used and the room temperature)
Electrical
Cooling System	Air, water optional
Hz	50*
Ph	3*
Volt	400*
Fuse Size A	10
Rated Power Input kW	2,5
Refrigerant
Refrigerant	R452 (alternative solutions available)
Dimensions
Net Weight kg	230
Air-cooled version \| W x D x H cm	45 x 93 x 160,5
Note	Note *other voltages and cycles available upon request. XVL 1 Steel is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
